High-resolution spectrum analyzer with 60fps waterfall spectrogram, SDR radio with vintage Sangean-style dial, multi-device hardware support, audio/EVP monitoring, frequency generation, TSCM rogue device detection, and investigation profile system.

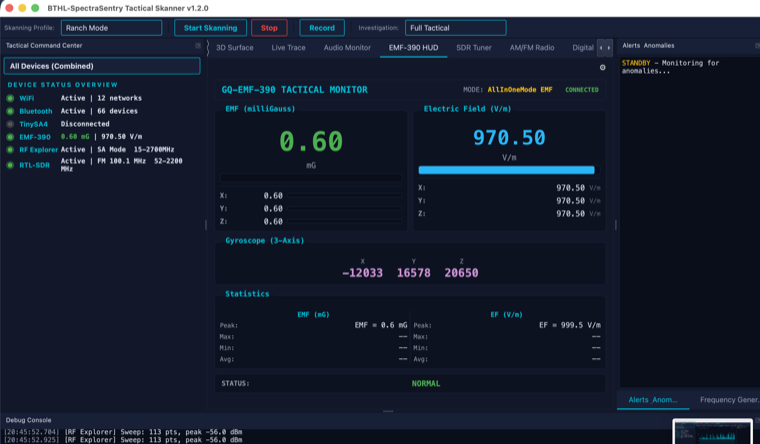

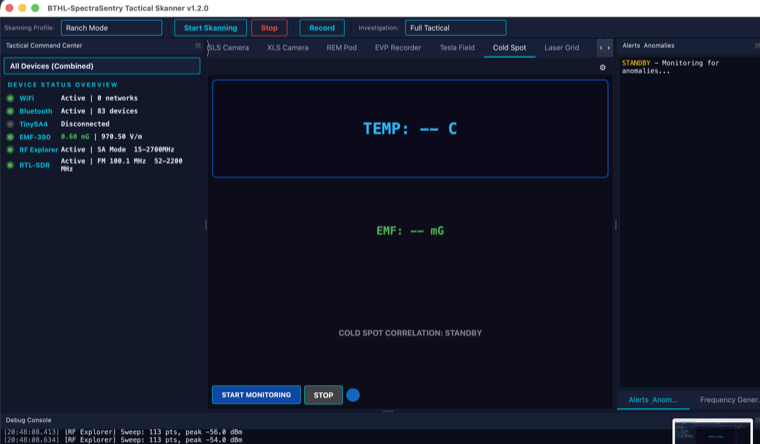

Environmental BLE sensor monitor. Tracks temperature, EMF, barometric pressure, and humidity via Bluetooth sensors. Detects paranormal-range anomalies (sudden temperature drops, EMF spikes). Cross-correlates environmental events with RF anomalies via IPC bridge.

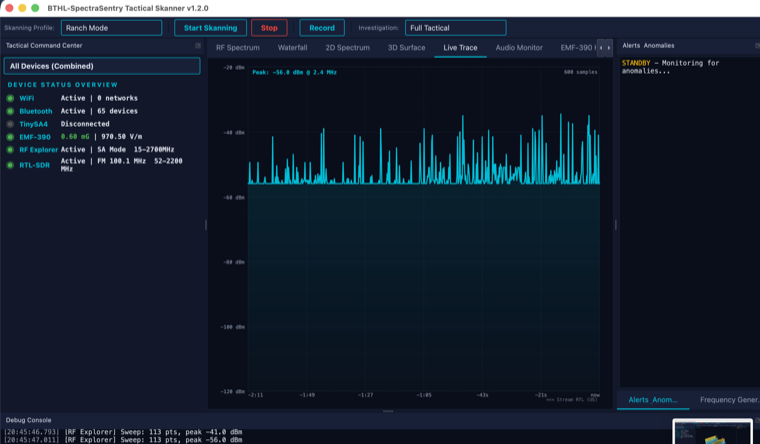

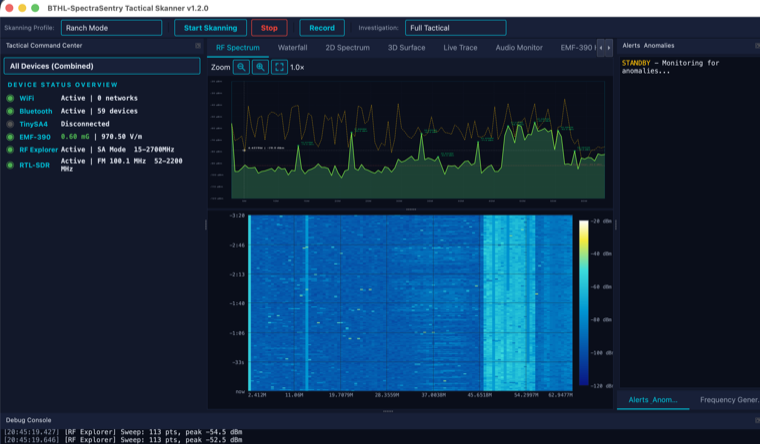

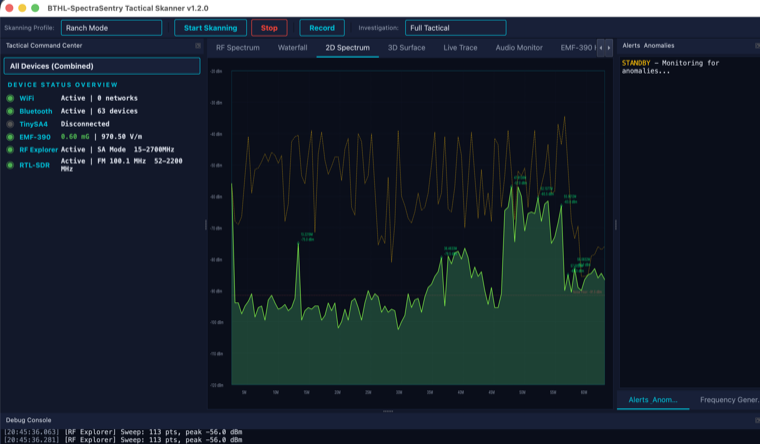

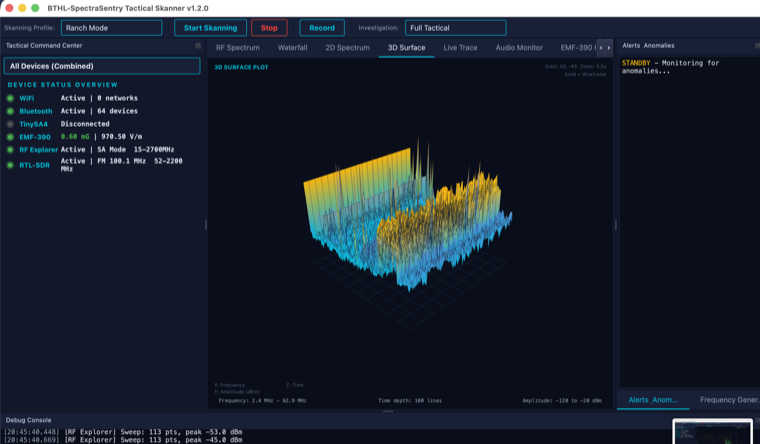

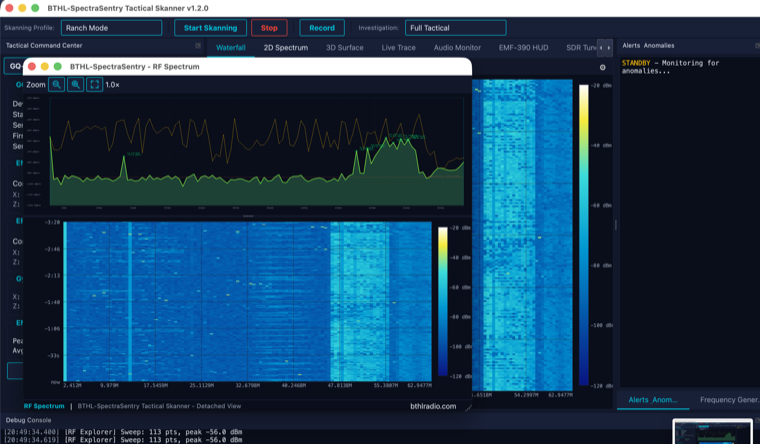

60fps waterfall spectrogram with bthl-cosmic color gradient. 2D multi-trace spectrum analyzer (live, max-hold, average, reference). 3D surface plot with wireframe overlay. Live oscilloscope trace. SVG vector export. HiDPI and pop-out multi-monitor support.

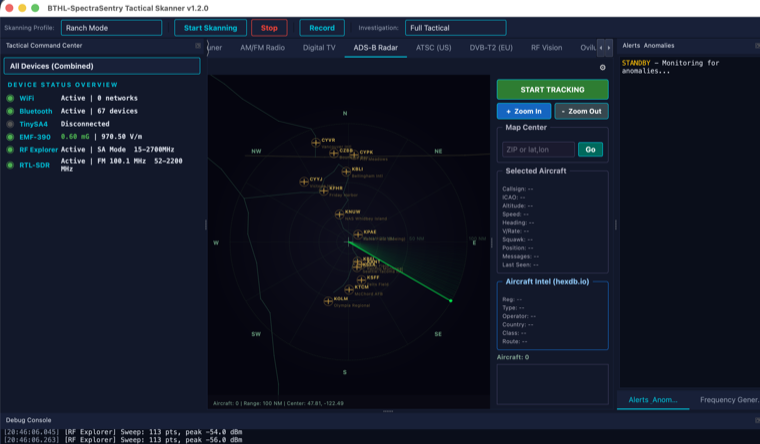

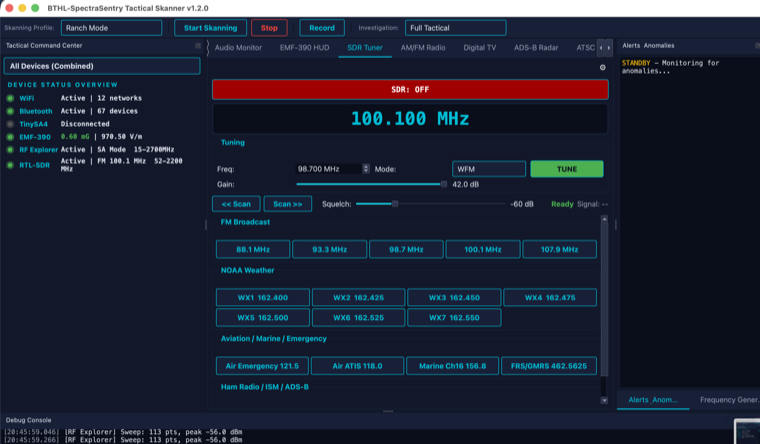

Vintage Sangean-style AM/FM dial interface. 6 demodulation modes: Wideband FM, Narrowband FM, AM, USB, LSB, CW. 20 presets including 7 NOAA weather stations, aviation, marine, ham, ISM, and ADS-B. FM auto-seek scanner with squelch. RTL-SDR E4000 tuner support.

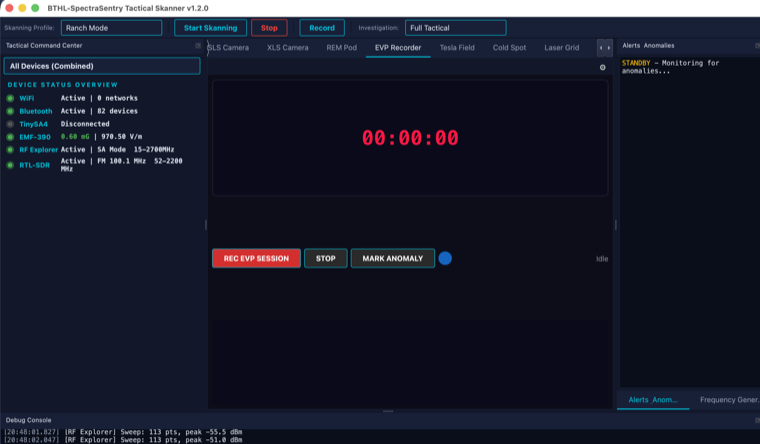

Real-time PCM waveform from system microphone. 64-band FFT frequency analysis. Infrasound 19 Hz “fear frequency” detection. dB-calibrated peak and RMS meters. 1x-64x waveform zoom. 16/24-bit WAV recording with alert-triggered capture and 1GB warnings.
7 waveform types: sine, square, triangle, sawtooth, white noise, pink noise, binaural. 9 Solfeggio presets (174-963 Hz). Schumann resonance (7.83 Hz) with binaural beat mode. Brainwave entrainment (Theta 6 Hz, Alpha 10 Hz, Beta 20 Hz). MIDI keyboard mode. Frequency sweeps (linear/logarithmic).
Spy camera detection (900 MHz, 1.2 GHz, 2.4 GHz, 5.8 GHz). Spy microphone detection (VHF/UHF/ISM/WiFi/BLE). Evil Twin WiFi detection (duplicate SSID, security downgrade, suspicious patterns). Rogue Bluetooth with OUI database. Known-bad surveillance vendor MAC matching. Whitelist management.
1.6 GHz anomaly monitoring (primary documented frequency). GPS L1 and Iridium satellite reference baselines. Ground Penetrating Radar band detection (10 MHz - 2 GHz). Infrasound 19 Hz detection. Environmental stimulation via Solfeggio and Schumann presets. Auto-activates binaural generation.

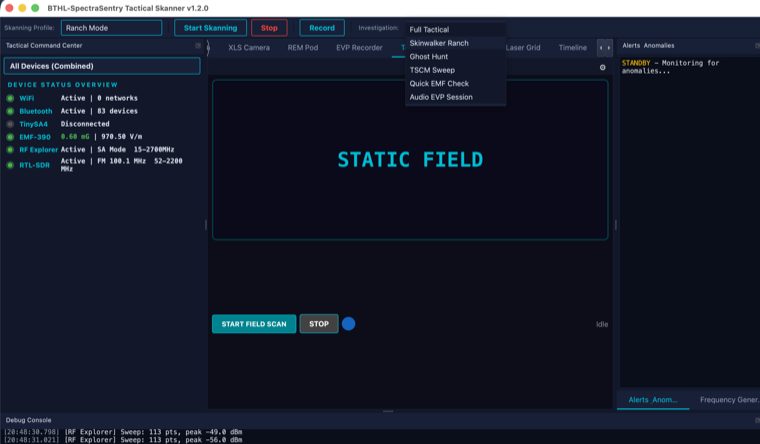

| Profile | Devices | Use Case |
|---|---|---|
| Full Tactical | All devices + all displays | Maximum coverage investigation |
| Skinwalker Ranch | TinySA + EMF-390 + WiFi + BT | 1.6 GHz anomaly + environmental correlation |
| Ghost Hunt | EMF-390 + Audio + BT | EVP detection + EMF spike monitoring |
| TSCM Sweep | TinySA + WiFi + BT | Counter-surveillance rogue device hunt |
| Quick EMF Check | EMF-390 only | Rapid environmental assessment |
| Audio EVP | Audio monitor only | Dedicated voice phenomena recording |

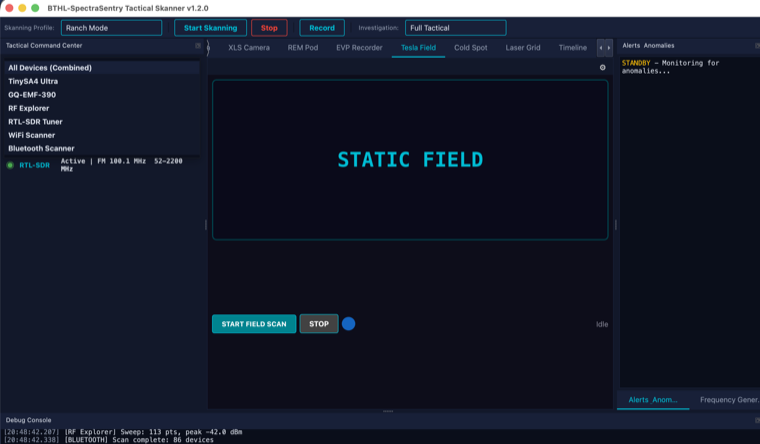

| Device | Type | Frequency Range | Connection |
|---|---|---|---|
| TinySA4 / TinySA Ultra | Spectrum Analyzer | 100 kHz - 5.3 GHz | USB Serial (SCPI) |

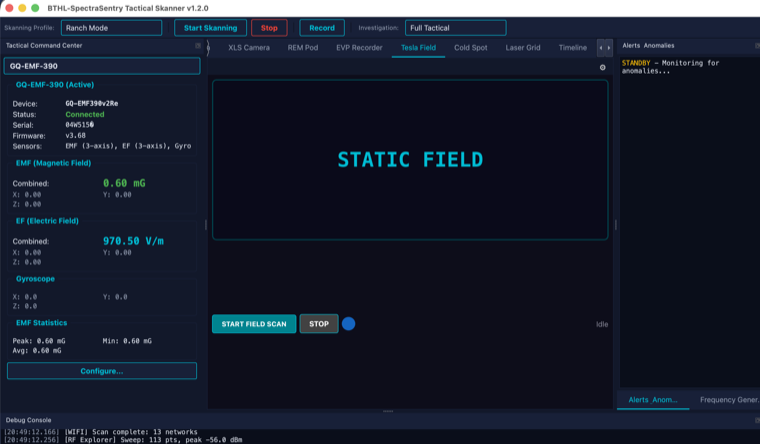

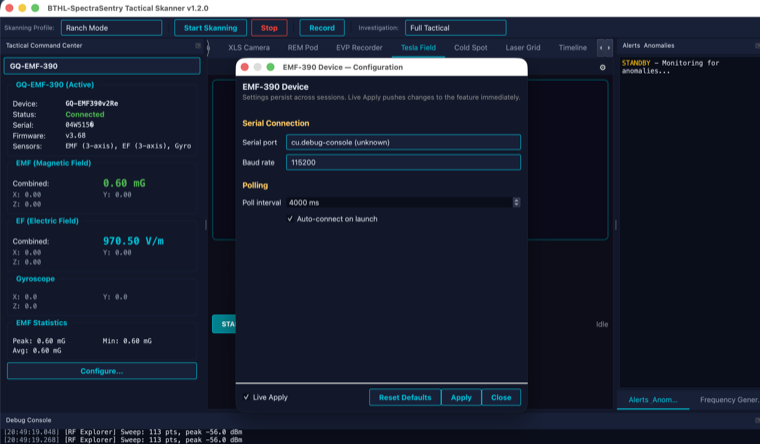

| GQ EMF-390v2 | EMF / EF / Gyro | EMF + Electric Field | USB Serial (CH340) |
| RF Explorer WSUB3G | Spectrum Analyzer | 15 MHz - 2.7 GHz | USB Serial (CP2102) |
| Nooelec SMArt XTR v5 | RTL-SDR Receiver | 52 MHz - 2.2 GHz | USB Bulk (librtlsdr) |
| WiFi (CoreWLAN) | Network Scanner | 2.4 / 5 / 6 GHz | Built-in (always-on) |
| Bluetooth (Core/IO) | BLE + Classic | 2.4 GHz ISM | Built-in (always-on) |
C++17, Qt6 (Core, Gui, Widgets, OpenGL, Svg, SerialPort, Bluetooth), GNU Autotools build system
FFTW3, SoapySDR, librtlsdr, CoreAudio AUHAL, ARM64 NEON SIMD optimization
macOS ARM64 (Apple Silicon M-series). CoreWLAN, CoreBluetooth, IOBluetooth, IOKit, AVFoundation. SQLite3 (WAL mode) with optional MySQL/PostgreSQL/Firebird backends.
Primary documented frequency at Skinwalker Ranch with GPS L1 and Iridium baselines
10-100 MHz deep subsurface, 100-400 MHz standard, 800 MHz-2 GHz high resolution
0.1-20 Hz monitoring. 18.98 Hz fear frequency documented to cause anxiety and unease
Persistence-based triggering with configurable thresholds and frequency watch alerts
RF anomaly + temperature drop + EMF spike + barometric change = correlated event
Info, Warning, Critical, Emergency severity levels with SQLite persistence and auto-record
